Prime-Line U 10546 Stainless Steel Lock and Door Reinforcement Plate for 1-3/4 In. Thick Doors, Stainless Steel Finish (Single Pack)
Product details
| Management number | 219069688 | Release Date | 2026/05/03 | List Price | US$10.85 | Model Number | 219069688 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

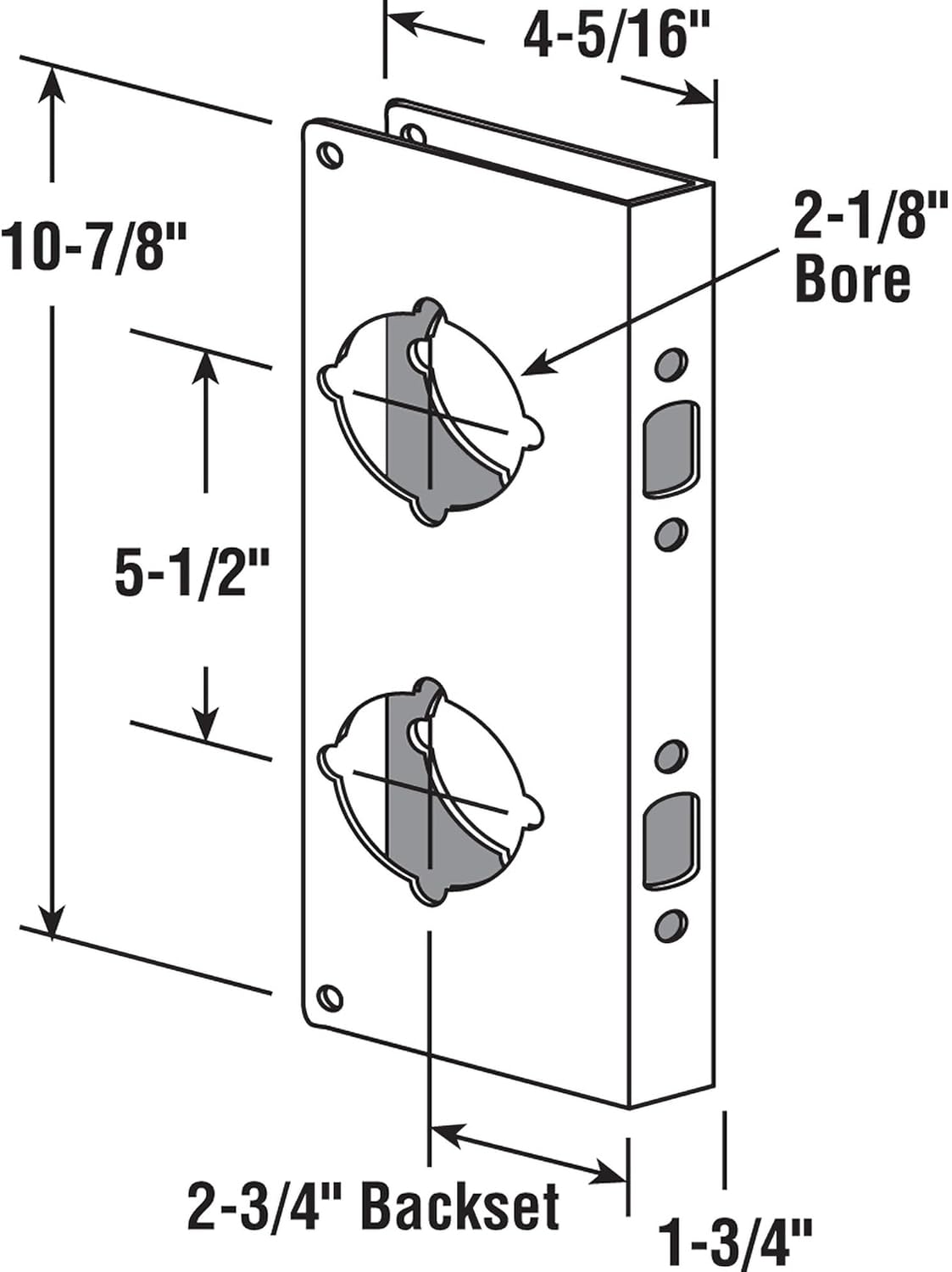

The Defender Security U 10546 Stainless Steel Lock and Door Reinforcer assists in preventing forced entry by reinforcing the weak spot of your door. It can be used to reinforce and repair metal, fiberglass and wood doors. Constructed of stainless steel, the lock reinforcer plate comes in a natural finish. All the necessary mounting hardware is included for a quick and easy installation. The lock reinforcement plate is pre-punched for mounting. The reinforcer is designed for snug fit on a 1-3/4 inch thick doors that have mortise or drive-in latches. Measuring 4-5/16 inch wide by 10-7/8 inch tall, the reinforcement plate accommodates key-in knob locksets on doors that have 2-1/8 inch bore sizes, 5-1/2 inch on center hole spacing, with a backset of 2-3/4 inch from the edge of the door. The door reinforcer is non-recessed to fit over your existing latch.
- ADDED SECURITY – Prevent forced entry by reinforcing the weak spot of your door with the non-recessed door lock reinforcer; use to reinforce and repair both metal, fiberglass and wood doors
- BUILT TO LAST – Made of stainless steel, the door lock reinforcement plate comes in a natural finish to fit over two bore holes 2-1/8 inch on your door
- EASY INSTALLATION – All the necessary mounting hardware is included with the lock reinforcement plate for a quick and easy installation; the door reinforcer plate is pre-punched for mounting. Remove the protective film after installation
- DIMENSIONS – The door lock reinforcement plate is designed for 1-3/4 inch thick doors only that have a 2-1/8 inch bore hole through the door, 5-1/2 inch on center hole spacing, with a 2-3/4 inch backset from the edge of the door to the center of the bore holes
- NOTE – Make sure to dry fit the 4-5/16 inch wide by 10-7/8 inch tall with a 0.03 inch thickness door lock reinforcer before permanently installing and refer to the line art drawing and compare with your needs before purchasing
| UPC | 049793105462 |
|---|---|
| Color | Stainless Steel |
| Lock Type | Deadbolt |
| Brand Name | Defender Security |
| Model Name | Door Guard |
| Style Name | Modern |
| Unit Count | 1.0 Count |
| Item Weight | 0.42 Kilograms |
| Finish Types | Stainless Steel |
| Manufacturer | Prime-Line Products |
| Model Number | U 10546 |
| Material Type | Stainless Steel |
| Item Type Name | Door Guard |
| Item Dimensions | 1.75 x 4.94 x 10.88 inches |
| Number of Pieces | 1 |
| Additional Features | Anti-Corrosion |
| Included Components | Door Guard |
| Manufacturer Part Number | U 10546 |
| Smart Home Compatibility | Not Smart Home Compatible |
| Recommended Uses For Product | Home, Office |
| Manufacturer Warranty Description | Goods are warranted against manufacturing defects for 1 year. In no case is Prime-Line responsible for user related damage or damage incurred during installation. Warranty is void if products are subjected to abnormal conditions, misapplication or abuse. |
| Global Trade Identification Number | 00049793105462 |
